“CREATED BY AUDIOPHILES WITH AN EXTRAORDINARY PASSION FOR HIGH-FIDELITY”
Car Audio Magazine
Technical Specifications:
Technical Specifications:
woofer Size: 4”, Tweeter Size 2"
RMS Power handling: 200 Watts per channel (100W - 200W RMS per channel is recommended)
Sensitivity: 90 db @ 2.83V
Frequency Response: 41-40,000 hz
Voice Coil Type: Ultra-High Temp Single 4 ohm Coil
SYSTEM Impedance: 4 ohm nominal
Crossover Network: 2-way 18db/oct
for ACTIVE 2 way component setup use with Critical MASS 4CH amplifier model # ELS-1000.4 For active crossover set ELS-1000.4, front channels to 3Khz Hi-pass and connect to tweeters only. Set rear channels to 3Khz Lo-pass and connect to Woofers only.
ULTRA-PERFORMANCE LIGHTWEIGHT 4 OHM DESIGN:
This component kit is an Ultra-Performance 4" Component kit made to use every watt from your 4 ohm amplifier
TRUE CARBON FIBER CONE:
This cone is made of real Carbon fiber to withstand more than 1000 Watts of peak music power.
The Lightweight Carbon Fiber Cone increases rigidity, efficiency and clarity at all levels which ultimately means more, undistorted sound.

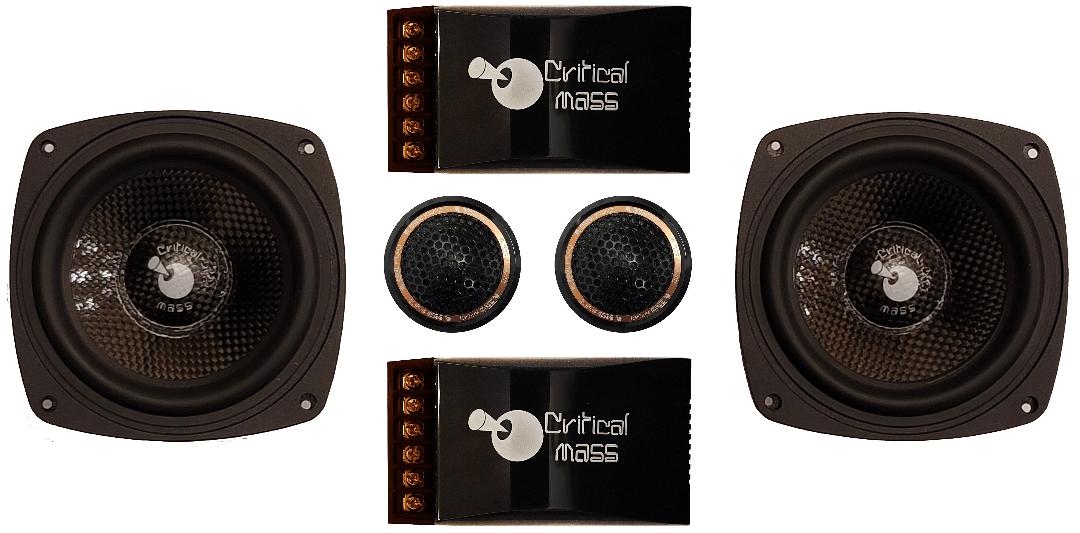

Included in this pro 2way 4 ohm kit:
- Two 4" Woofers
- Two 2" tweeters
- Two 18db/oct Crossover networks (2way)
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE
