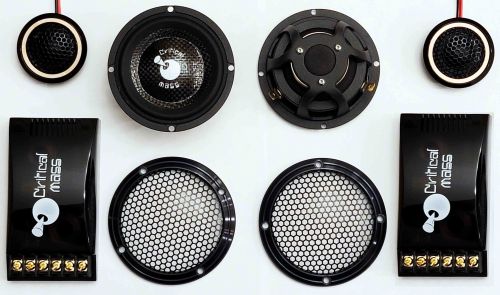

Critical Mass CM-C3.54

Tap for gallery


This product is currently out of stock

Product Information

Car Audio Magazine


Technical Specifications:



Size:                                                            3.5 inch cpmponent w 2 way crossover 24db/oct w tweeter protection

Motor type:                                                 Hybrid Neo M.N.M.

Cone:                                                         True Carbon Fiber, silk (Japan) on tweeter

Voice Coil:                                                  1.5 inch high power on 3.5. 1" high power on tweeter

Impedance:                                                4 ohms

RMS Power Range (Watts):                       50-200 (200W RMS w 24db/oct Hi-pass at 100Hz or above

Peak Power Handling (Watts):                    400

Sensitivity 2.83v at 1 meter (db):                90.2

Frequency Response:                                 63-35,000hz

xmax:                                                           6 mm

Re                           3.5


Rms                        3.6


Qms                       2.07


Qes                        0.29


Qts                         0.25


Cms                        0.30


Mms                        8.2


BL                           6.1


VAS                        1.1


Le                           0.2


This driver is made with the automotive performance enthusiast in mind.

This woofer handles up-to 20 times more power, has a considerably higher
linear and maximum excursion, and audibly lower distortion.
This Critical MASS High-Performance mid-woofer will not
only play louder and handle more power, but it will also play in a smaller box.


Allows for much greater linear excursion and power handling than conventional
drivers. This Ultra-Performance woofer utilizes the G.A.P. configuration technology,

which results in up to 2.5 times more X-max than conventional motor designs.
Huge, vented, NEO motor structure. Utilizing the latest and best high temp,

high grade Neodymium-Iron-Born magnets, which generate up-to 20 times more magnetic energy
than conventional ceramic magnets of equivalent size. This design keeps the
motor running cool, enabling much greater power handling capability than conventional
Neo designs.


This cone is one of the only cones that will withstand 1000 Watts of peak music power.
The Lightweight Carbon Fiber Sandwich Cone increases rigidity, and therefore efficiency,
which ultimately means more, undistorted beutiful sound for decades to come.

Product CodeCM-C3.54
